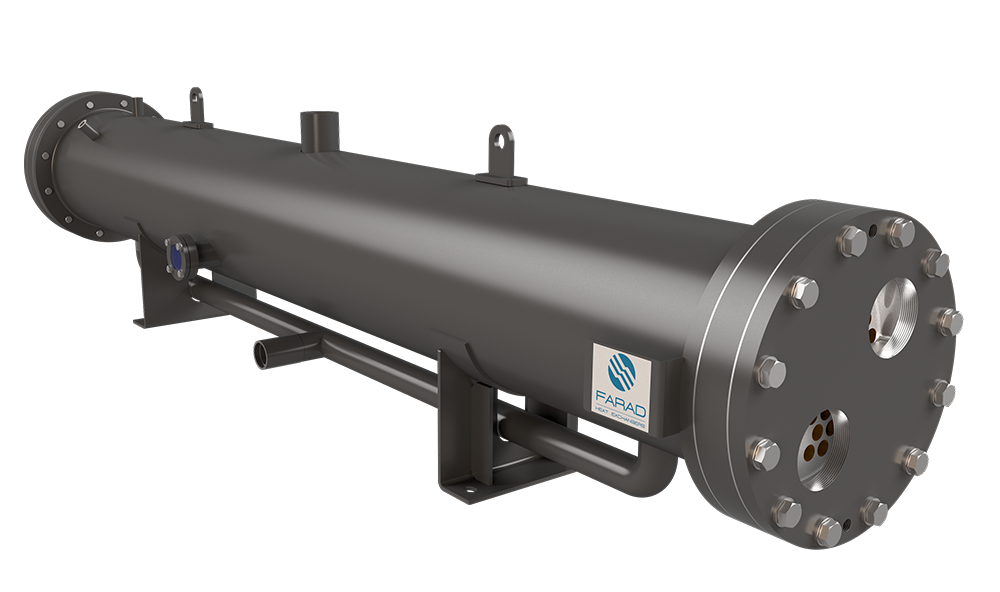

FC Condensers

The condenser is used in refrigeration systems that dump excess heat into seawater or freshwater. The refrigerant flows in the shell and the water in the tubes. The FC line of condensers employs enhanced tube with fins on the outside and grooves on the inside for maximum heat transfer efficiency.

Application

The FC condenser is used when the refrigerant condenses against water, as opposed to air. It is suited to HVAC installation on ships where cold medium is seawater. It can also be used for HVAC installations in industry.

Capacity

Model range: 14 kW to 1450 kW of condensing duty.

Materials

Materials are sourced from reputable EU manufacturers and material thickness is higher than that required by the relevant design code. The heat exchanger is designed to have a long service life. Low fin tubes are used in Cu and CuNi 90/10 material. Low finned tubes are a reliable solution for controlling the temperature of gases and liquids and condensing refrigerants. They offer large heat transfer surface area, therefore provide potential to save in terms of materials and fill volumes. Tubes sheets are available in C. Steel, Stainless Steel and Bimetallic (CuNi90/10 and Steel).

Design

Choose from one of our standard models or contact Farad for a different application.

Accessories (optional)

Temperature gauges and sensors
Air Vent and drain valves
Other as per customers’ requirements.

Approvals

Third party approval based on customer requirement. All marine classification society approvals may be given. CE marking is stamped for land based application.
